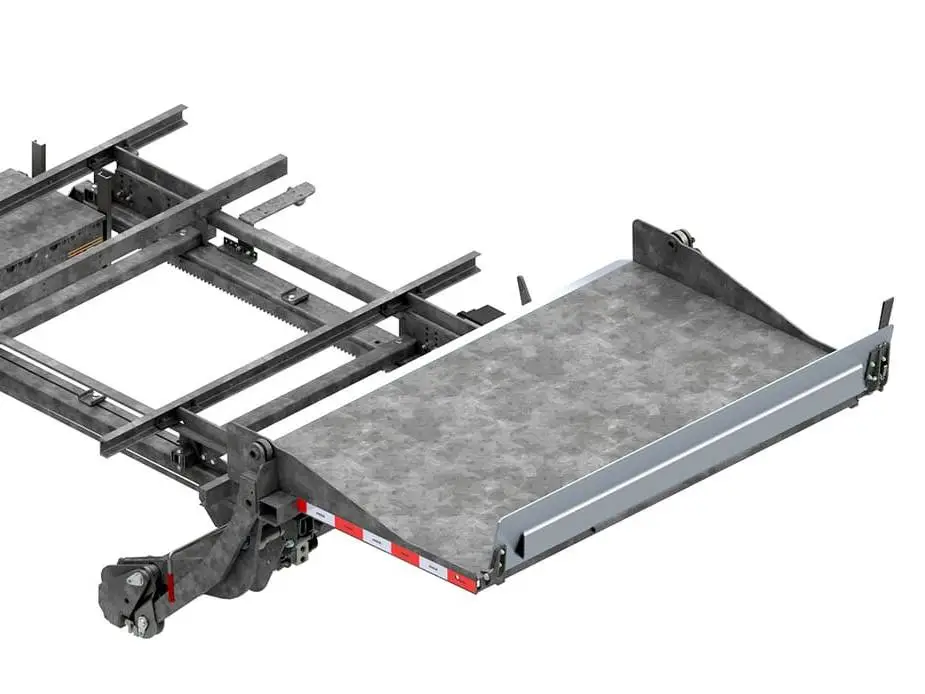

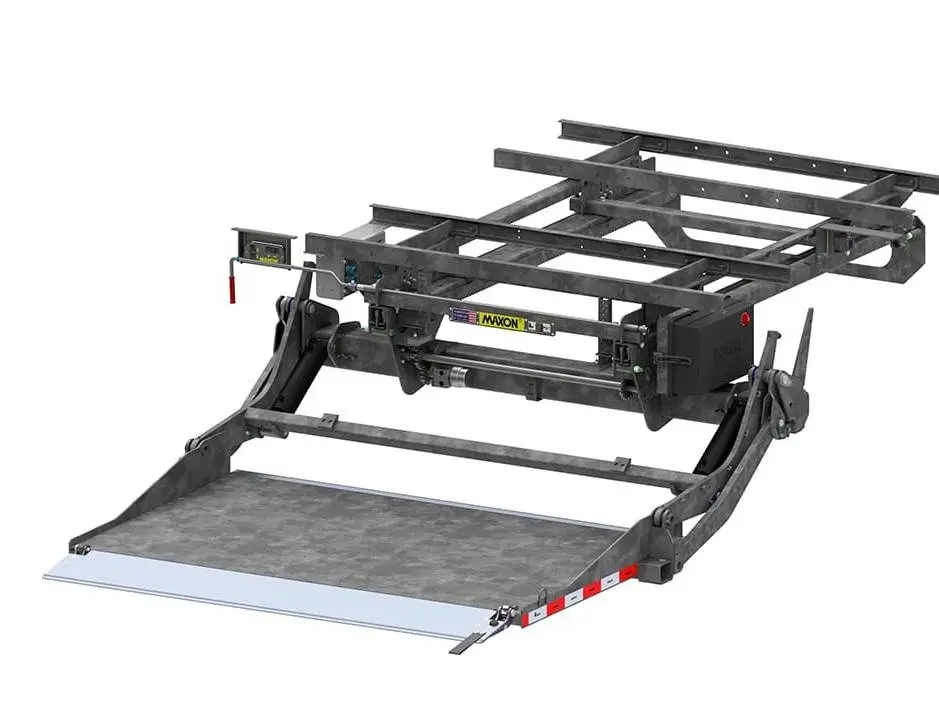

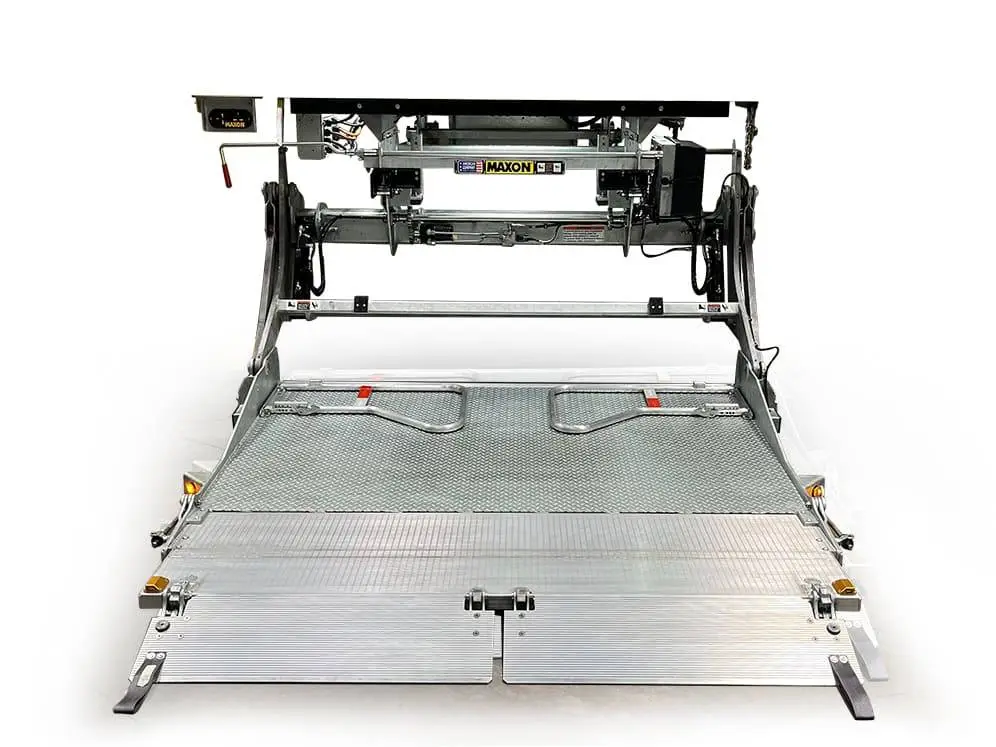

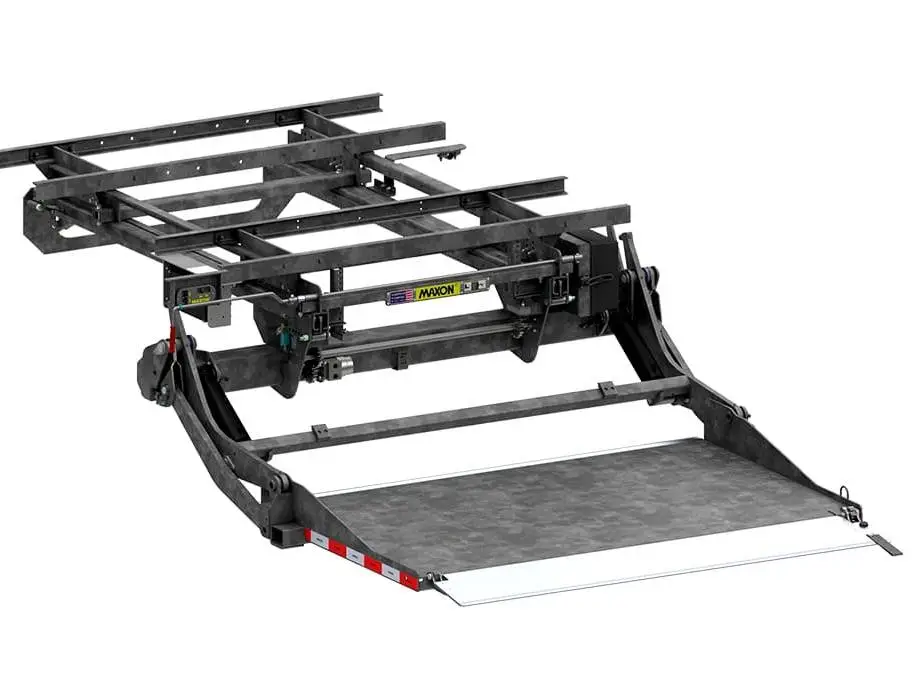

Maxon RA
The Maxon RA SlideLift® is a highly specialized solution for trailer side doors. Designed to offer stability, reliability and ease of installation, it combines a self-leveling platform (Level Ride), a heavy-duty galvanized structure and advanced hydraulic technology.
Key technical features :
- Level Ride platform: always level, from floor to trailer
- Available in two capacities:
➤ RA-35: 1,588 kg (3,500 lb)
➤ RA-45: 2,041 kg (4,500 lb) - Two hydraulic cylinders with bi-directional locking valves
- Delivered fully assembled and pre-filled with hydraulic oil
- Standard galvanized finish: maximum corrosion resistance
- Wide arms for enhanced stability and maximum lateral clearance
- Automatic hydraulic locking system (no manual intervention required)
| Specifications | RA-35 | RA-45 |
|---|---|---|
| Lifting capacity | 1,588 kg (3,500 lb) | 2,041 kg (4,500 lb) |
| Platform dimensions | 86" x 79" (with ramp) or 86" x 55" (with ramp) |
60" x 79" or 52" x 55" (with ramp) |
| Total weight | ≈ 1,105 to 1,315 lbs | |
| Compatible frame heights | 43" to 60" (loaded empty) | |
Need information or help?
Talk to an STC advisor now
Product documents (Downloadable)
Download the documents you want on Maxon RA
Full description
Maxon RA: Robust, compact and ready to perform side-slide tail elevator
The Maxon RA SlideLift® is a highly specialized solution for trailer side doors. Designed to offer stability, reliability and ease of installation, it combines a self-levelling platform (Level Ride), a heavy-duty galvanized structure and advanced hydraulic technology. With wide platforms running the full width of the trailer, the RA ensures safe, smooth loading, even in demanding environments.
Key features of the Maxon RA SlideLift® tail elevator
Available in two capacities:
➤ RA-35: 1,588 kg (3,500 lb)
➤ RA-45: 2,041 kg (4,500 lb)Level Ride platform: stays perfectly level all the way to the ground
Two hydraulic cylinders with bi-directional locking valves
Supplied fully assembled and pre-filled with hydraulic oil
Wide arms for enhanced stability and maximum lateral clearance
Extra-wide platform occupies the entire width of the trailer
Central junction box: simplified connections for power supply and accessories
Greasable pivots at all articulation points
Integrated flashing platform lights for added safety
Automatic hydraulic locking system
Standard galvanized finish for optimum corrosion protection
Available options
Waterproof hand-held remote control
Dual pump/motor
MAX ECU module
Rubber mudguards
Emergency lighting kit
Railing kit
Why choose Maxon RA?
Designed specifically for trailers with side doors
Delivered ready-to-install, reducing assembly time and costs
Self-levelling platform for fast, effortless loading
Compact, safe installation, with automatic locking in folded position
Backed by one of the best technical support services in the industry
📞 Contact Solutions Transport Camion at (450) 300-1623 for a personalized quotation or installation advice.
Official Maxon distributor in Quebec.
Questions & Answers
Maxon RA SlideLift® frequently asked questions
For which vehicles is the Maxon RA designed?
The Maxon RA model is specifically designed for trailer side doors. It’s ideal for delivery fleets, food or distribution trucks, and any vehicle with side access requiring a high-performance tailgate.
What lifting capacities are available?
RA-35: 1,588 kg (3,500 lb)
RA-45: 2,041 kg (4,500 lb)
What is a "Level Ride" liftgate?
The Level Ride allows the platform to remain perfectly horizontal during ascent or descent, reducing risks for both operator and goods.
What options are available for the Maxon RA tailgate?
-
Manual remote control
-
Emergency lighting kit
-
Dual pump, MAX ECU
-
Railings and mudguards
