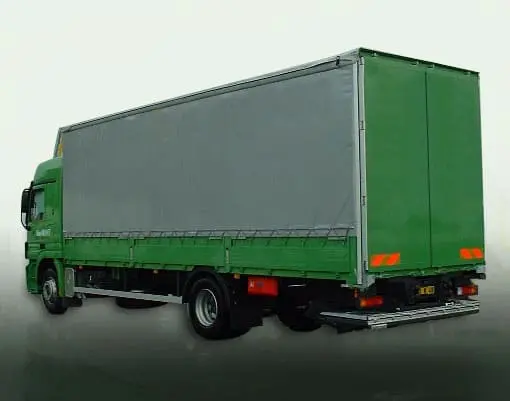

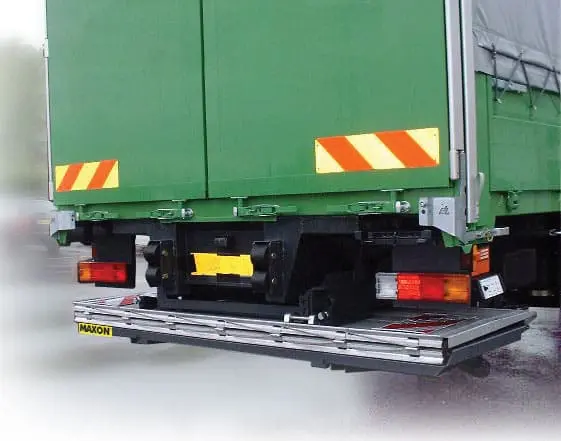

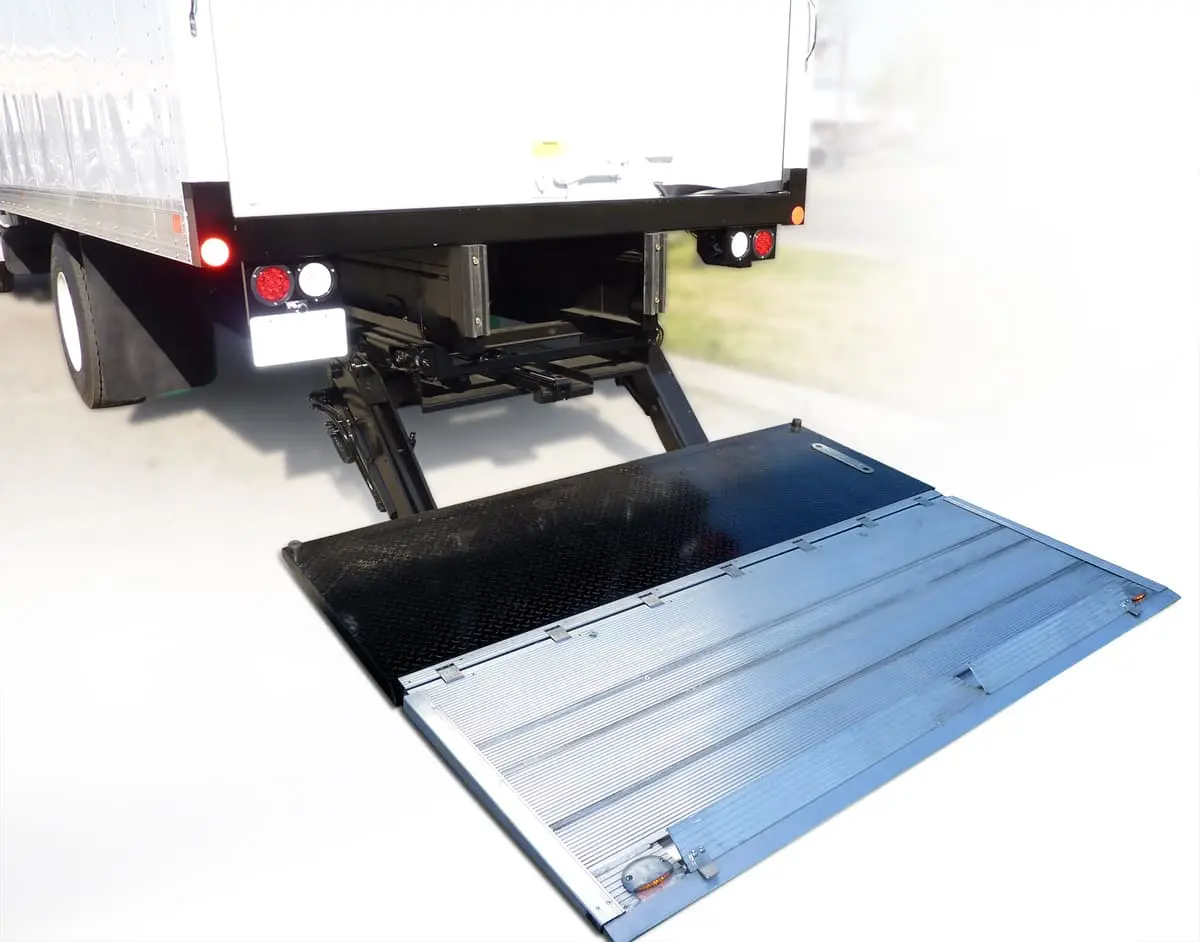

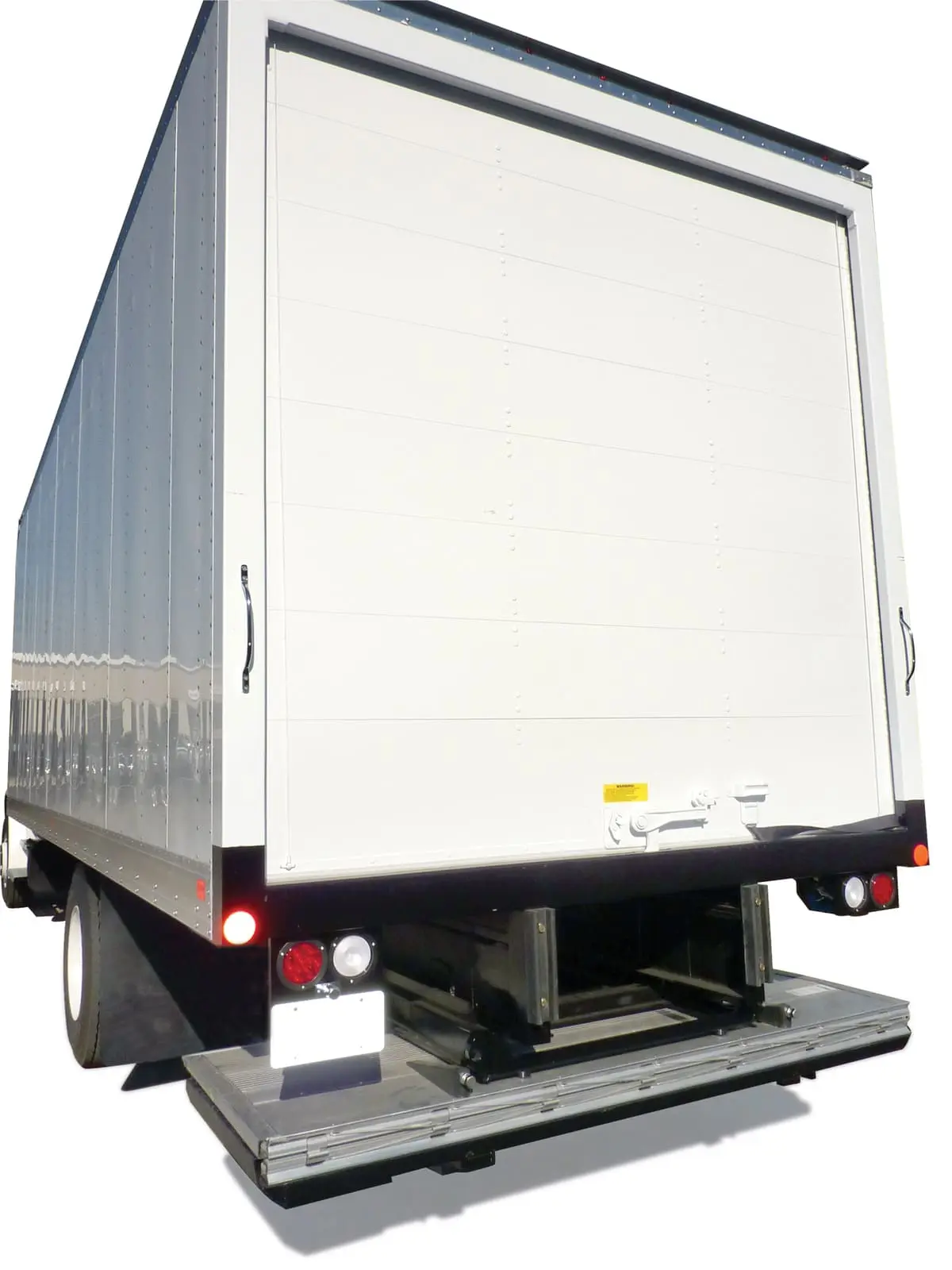

Maxon GPST
The Maxon GPST is an ultra-compact tail elevator designed specifically for trucks. It features exclusive X1 technology with only one lift and one tilt cylinder, reducing mechanical parts and maintenance costs. Its QuickLock system stabilizes the load without stressing the rollers. With its Level Ride platform and rapid installation, the GPST is ideal for urban and commercial fleets.
Key technical features :
- Exclusive X1 technology: a single lift and tilt cylinder → fewer parts, less maintenance
- Lifting capacity up to 4,400 lbs (1,996 kg)
- Double-acting cylinders for smooth, reliable platform sliding
- QuickLock system: the bolt carries the load (not the rollers), preventing bouncing and enhancing stability
- Level Ride platform with smooth, two-speed descent
- Double carriage stops + foot controls
- Compatible with frames from 28″ to 35″ wide
- Requires only 67″ rear overhang
Need information or help?
Talk to an STC advisor now
Product documents (Downloadable)
Download the documents you want on Maxon GPST
Full description
Maxon GPST SLIDELIFT®: Compact and intelligent tailgate for trucks
The GPST is the latest addition to Maxon’s SlideLift® range, specially designed for trucks. Compact, powerful and easy to maintain, it combines patented X1 technology, an exclusive QuickLock, and simplified installation, making it one of the most efficient lifts on the market for urban and commercial deliveries.
Designed to last and simplify everyday life
The GPST-44 offers a capacity of 1,996 kg (4,400 lb) with a 67″ x 94.5″ platform, all in a lightweight (≈ 750 kg), space-saving design. It installs easily on trucks with a floor height between 38″ (loaded) and 56″ (unladen) and minimal rear overhang.
Technical features and benefits
Exclusive X1 technology: a single lift and tilt cylinder → fewer parts, less maintenance
Dual opposed cylinders for smooth, reliable platform glide (one lifting cylinder and one tilting cylinder)
QuickLock system: the bolt carries the load (not the rollers), preventing bouncing and enhancing stability
Torsion-spring-assisted tilting section for easy opening/closing
Level Ride platform with smooth, two-speed descent
Double carriage stops + foot controls
Waterproof manual override and fully sealed wiring harness
Galvanized finish as standard for superior corrosion resistance
Easy to install, simple to maintain
Quick mounting with 4 adjustable brackets
Compatible with frames from 28″ to 35″ wide
Requires only 67″ rear overhang
Maintenance-free ring + service switch for troubleshooting
Why choose Maxon GPST SlideLift®?
Perfect for city, commercial and light delivery trucks
Fewer hydraulic components → lower maintenance costs
Compact, lightweight, stable and FMVSS & CMVSS compliant
Ideal for panel vans, curtain-siders and folding trucks
Questions & Answers
Frequently Asked Questions - Maxon GPST SlideLift
Who is the Maxon GPST tail elevator for?
The GPST is designed specifically for urban delivery, commercial and industrial trucks. Its compact size and advanced technology make it perfect for fleets looking for efficiency, reliability and low maintenance.
What is the maximum lifting capacity of the GPST?
The GPST-44 can lift up to 1,996 kg (4,400 lb). It’s an ideal solution for heavy loads that need to be handled safely on standard-height trucks.
What is Maxon's X1 tailgate technology?
X1 technology uses just one cylinder for lift and one for tilt. The result: fewer parts, less maintenance (fewer hoses, valves, etc.), and smooth performance.
What are the advantages of Maxon's QuickLock system?
Unlike traditional liftgates that rest on rollers, the QuickLock carries the load directly, preventing platform bounce when loads are transferred from truck to platform. This improves stability, safety and durability.
What options and functions are included with Maxon GPST?
Assisted tilting section (torsion springs)
Foot controls (can be disabled if required)
Sealed manual override and sealed harness
Integrated warning lights
Double carriage stops
Motorized descent (PowerDown)
What's the difference between the Maxon GPST tailgate and the Maxon GPSLR?
Comparison table between Maxon GPST tailgate and Maxon GPSLR tailgate
| Features | Maxon GPST | Maxon GPSLR |
|---|---|---|
| Type | Compact sliding tailgate for trucks | Heavy-duty sliding tailgate for trailers and trucks |
| Maximum capacity | 1,996 kg (GPST-44) | Up to 2,495 kg (GPSLR-55) |
| Platform dimensions | 67" x 94.5" | Up to 86" x 80" + ramp |
| Lifting technology | X1 - 1 lift + 1 tilt cylinder | Level Ride with optimized arms |
| Locking system | QuickLock (carries the load, not the rollers) | Automatic hydraulic locking |
| Total weight | ≈ 750 kg (GPST-44) | 767-885 kg depending on model |
| Finish | Galvanized - STANDARD | |
| Installation | Single, 4 adjustable brackets, 67" rear overhang | Trailer-mounted with 68" to 78" rails |
