TE-33

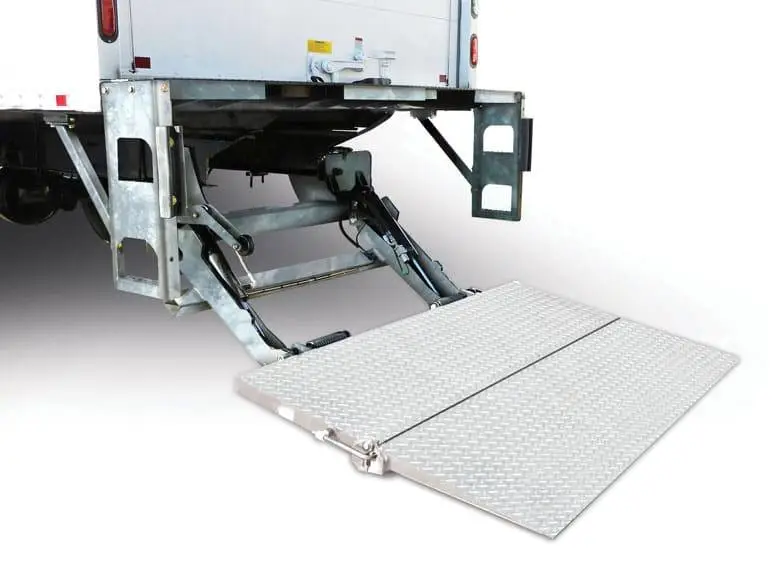

The Maxon TE-33 liftgate is part of the Tuk-A-Way® range of freight liftgate specially designed for medium- to heavy-duty delivery trucks. With a lifting capacity of 3,300 lb (1,497 kg) and a sturdy 55 “x 86” platform, it is ideally suited to commercial fleets handling palletized loads, carts or industrial equipment.
| Model | Capacity | Platform dimensions | Total weight | Frame height |
|---|---|---|---|---|
| TE-33 | 1,361 kg | 1,219 x 2,134 mm or 1,321 x 2,134 mm |
ST - 408 kg / 463 kg ST/AL - 427 kg / 442 kg |
1,118 mm (with load) to 1,372 mm (without load) |
| TE-33 L | 1,361 kg | 1,219 x 2,134 mm or 1,321 x 2,134 mm |
ST - 408 kg / 463 kg ST/AL - 427 kg / 442 kg |
965 mm (with load) to 1,118 mm (without load) |
| TE-33 WR | 1,361 kg | 1,219 x 2,134 mm or 1,321 x 2,134 mm |
ST - 408 kg / 463 kg ST/AL - 427 kg / 442 kg |
1 118 mm (with load) to 1 372 mm (without load) |
Key technical features :
Lifting capacity: 3,300 lbs (1,497 kg)
Platform dimensions: 48 x 84 in (1219 x 2134 mm)
Approximate total weight: 900 lbs (408 kg) to 1020 lbs (463 kg)
Compatible frame heights: 38 “to 44” (loaded)
Galvanized finish as standard for enhanced corrosion resistance
MAX GRIP® non-slip surface
Torsion springs and integrated step
IP67 waterproof pump housing
SmartSpace® integrated + extension plate
Need information or help?
Talk to an STC advisor now
Download the documents you want on TE-33
Maxon TE-33: Heavy-duty liftgate up to 3,300 lbs with folding TUK-A-WAY® platform
The Maxon TE-33 liftgate is part of the Tuk-A-Way® range, specially designed for medium- to heavy-duty delivery trucks. With a lifting capacity of 3,300 lb (1,497 kg) and a sturdy 55 “x 86” platform, it is ideally suited to commercial fleets handling palletized loads, carts or industrial equipment.
Its folding design allows easy access to the dock, while its galvanized finish, torsion springs, grease fittings, and MAX GRIP® non-slip platform ensure long-lasting, safe performance even in intensive conditions.
Technical specifications
- Lifting capacity: 3,300 lb (1,497 kg)
- Platform dimensions: 48 x 84 in (1219 x 2134 mm)
- Approximate total weight: 900 lbs (408 kg) to 1020 lbs (463 kg)
- Compatible frame heights: 38 “to 44” (loaded)
- Galvanized finish as standard for enhanced corrosion resistance
- MAX GRIP® non-slip surface
- Torsion springs and integrated step
- IP67 waterproof pump housing
- SmartSpace® integrated + extension plate
Available options
- Flexible or bolted step with firewall
- Cabin cut-off switch
- Carriage stops (single or double)
- Dock shock absorbers (rubber or plastic)
- Hand-held or street-side remote control
- MAX ON-LOCK® lock
- Duty cycle counter
đź“ž Contact Solutions Transport Camion at (450) 300-1623 for a personalized quote or installation advice. Official Maxon distributor in Quebec.
Frequently asked questions about the Maxon TE-33 liftgate Tuk-A-Way®
What is the lifting capacity of the Liftgate Maxon TE-33?
The Maxon TE-33 can lift up to 3,300 lb (1,497 kg), making it a robust solution for commercial fleets.
What are the platform dimensions of the Maxon TE-33 Liftgate?
The standard Maxon TE-33 platform measures 48 x 84 inches (1219 x 2134 mm), ideal for pallets and rolling equipment.
Is it compatible with dockside loading?
Yes, like all Tuk-A-Way® elevators, the Maxon TE-33 platform folds under the truck to allow full access to the dock.
How heavy is the Maxon TE-33 freight elevator?
The Maxon TE-33 freight elevator weighs between 900 lbs (408 kg) and 1020 lbs (463 kg) depending on the Steel or Steel/Aluminium configuration selected, including platform, structure and hydraulic system.
Is the TE-33 corrosion-resistant?
Yes, the TE-33 comes with a galvanized finish as standard and an extruded aluminum platform, ensuring optimum durability.
